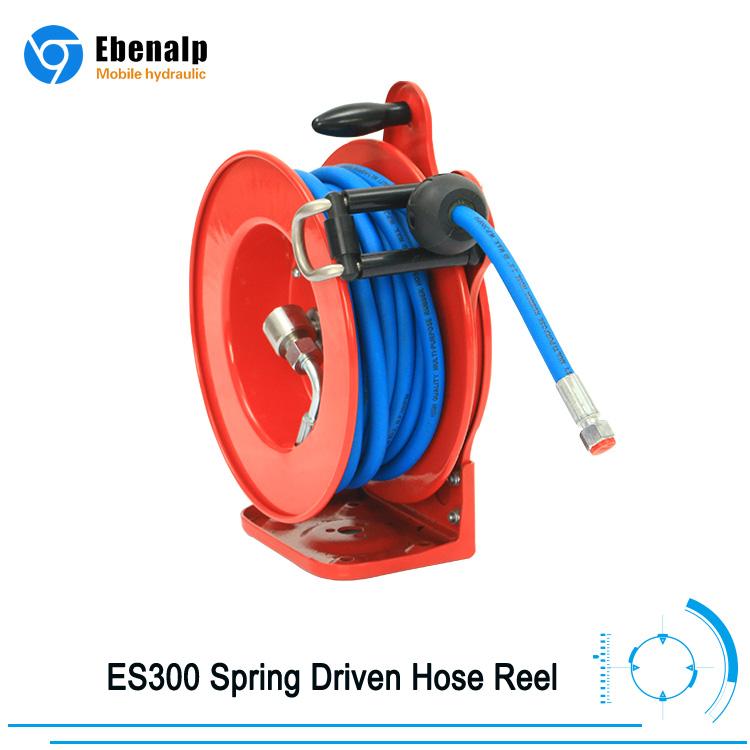

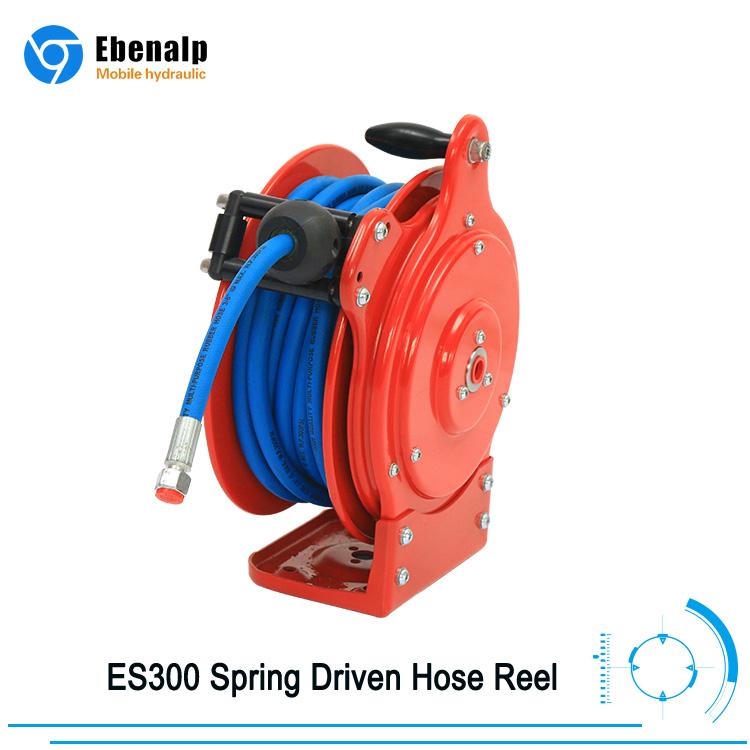

High Pressure Cleaning Hose Reel
Product introduction:
Ebenalp high-pressure cleaning hose reels are widely used in street cleaning vehicles, sanitation vehicles, factory workshops, auto repair shops, 4S shops, machinery and shipbuilding industries, Large mechanical and electrical maintenance, food and chemical high-pressure cleaning, municipal sanitation pipeline dredging and cleaning, flower and tree root carving process , tap water pipeline trenchless cleaning, rust and dirt removal, etc.
The reel is used to transfer pressure fluid, water, gas and other fluids. The highest pressure can reach 300Mpa.
The reel is made of high-strength steel, which is integrally drawn by a mold, and the structural frame is stamped and formed, with high strength, no deformation, durable, and can be used in complex environments.
Specification:
| Model |
Reel Weight |
Max Pressure |
Hose Size |
Hose Outlet |
Reel Inlet |
Max Hose Length |
Size Index |
| kg |
lbs |
bar |
psi |
BSP |
mm |
mm |
m |
ft |
| ES300SRSH010D10 |
11 |
24 |
350 |
5076 |
3/8 |
M18X1.5 |
G1/2 |
10 |
32 |
1 |
|
If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer
|
Product Features:
1. The reel is designed with hose tensioning function to ensure that the hose will not be scattered during use
2. Adopt international top high-pressure hose to ensure no leakage and no explosion under high pressure and ultra-high pressure.
3. The surface of the main structure is painted or sprayed, which is not easy to rust or oxidize.
4. Open rotary joint to ensure the transmission energy of high-pressure water with minimum pressure loss.
5. Supporting structure bracket, strong strength suitable for vehicle or horizontal installation, The direction of the guide arm can be adjusted as required.
6. The guide frame provides multiple hose outlet orientation requirements to meet the needs of actual operating conditions.
7. Optional material: carbon steel/aluminum alloy/stainless steel
Application areas:
1. Factory workshop
2. Auto Repair Factory 4S Shop
3. Machinery and shipbuilding industry
4. Large mechanical and electrical maintenance
5. Food chemical high pressure cleaning
6. Municipal sanitation pipeline dredging and cleaning
7. Flower and tree root carving craft cleaning and other occasions
Factory Information:
Our patented Ebenalp Winder adopts advanced concept for design and production and is durable and good-looking.. It has various product categories, including spring-powdered, motor-powered and hand-operated type and can be used at a broad area, including firefighting, emergency rescue, municipal environmental sanitation and road cleaning, on-site management in factory and plant, airport and railway oil transportation, engineering machinery and other occasions where hose management is required.
Research and development team of Ebenalp is experienced in hydraulic system design practice and dedicated to helping customers solve their problem with the most thoughtful and highest quality service. We provide all kinds of pipeline solutions related to winder. We are the best supplier and partner in hydraulic joint sector.
