Product Description

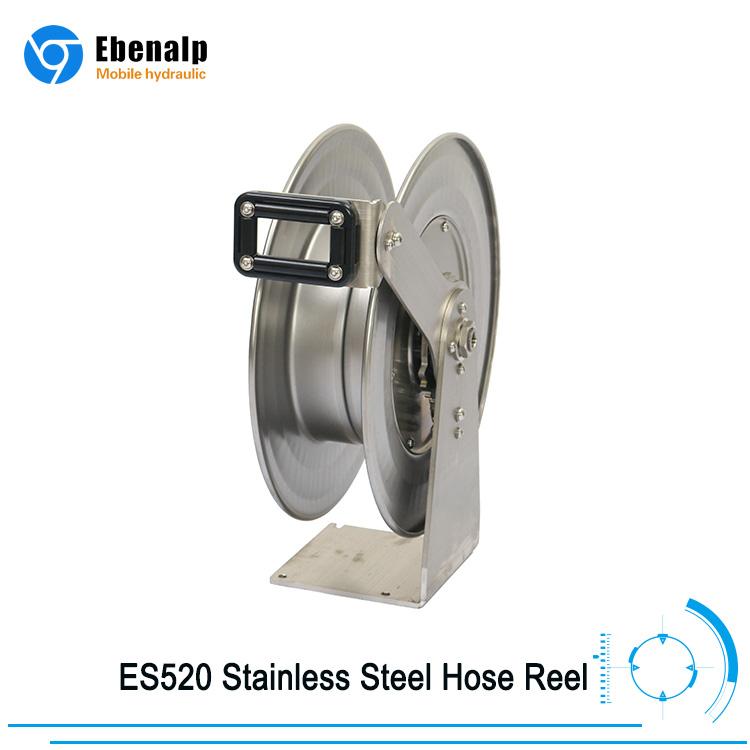

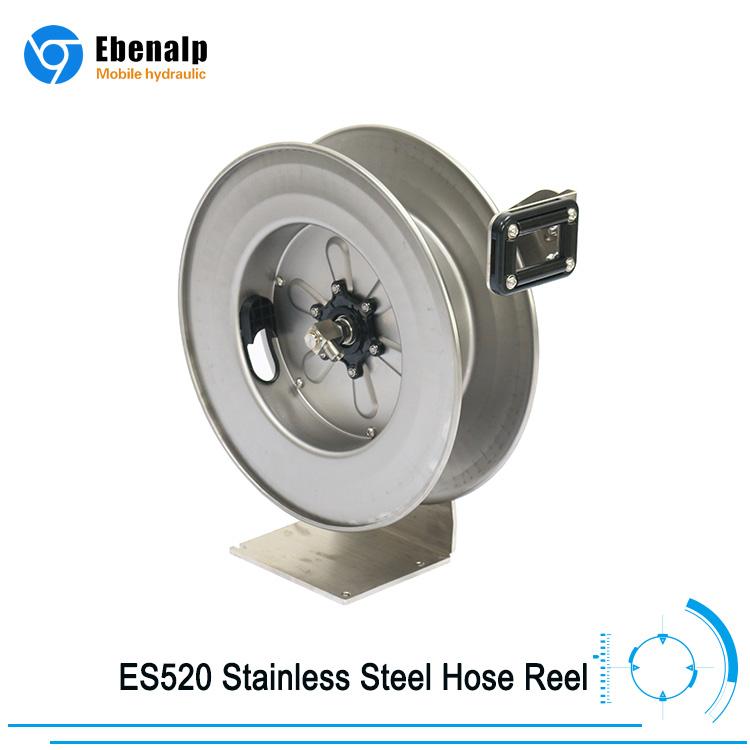

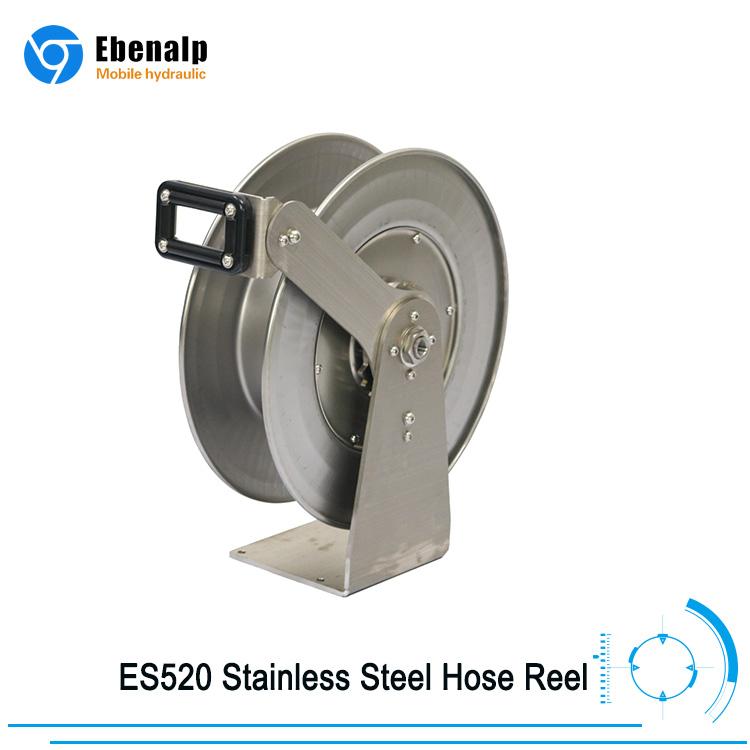

ES520 Stainless Steel Hose Reel



Product Introduction:

Ebenalp stainless steel reels are all made of SUS304 and SUS316L high-quality stainless steel.

Using Ebenalp corrosion-resistant stainless steel reels will extend the life of the hose used for transporting chemical fluid or cleaning.

By properly storing unused hoses can reduce tripping accidents caused by the disorderly storage of hoses and improve the working environment at the same time.

Stainless steel hose reels have widely application , such as : food production、cleaning , delivery chemical fluid and industrial solvent treatment, stainless steel hose reels can also be used coastal and offshore corrosion resistant environments with demanding requirements.

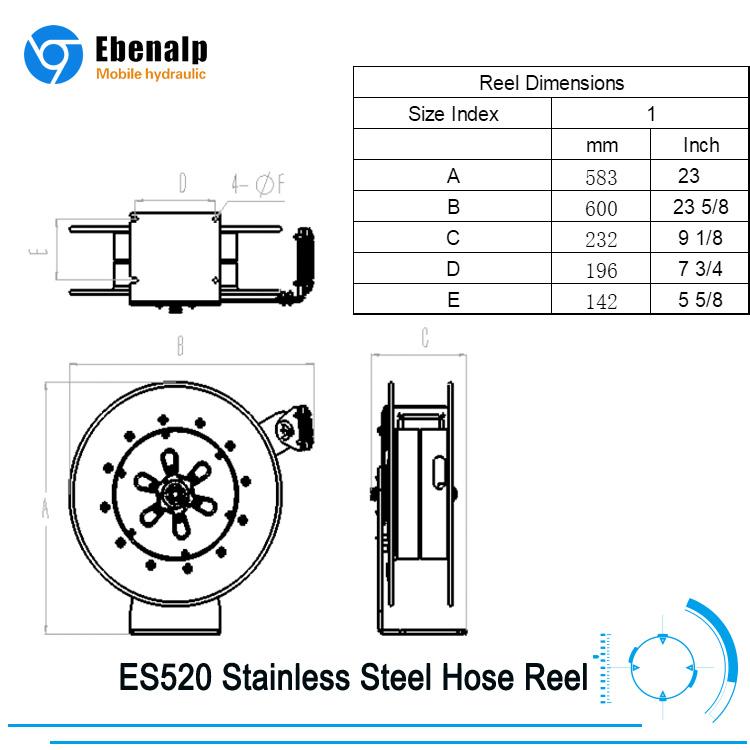

Specifications:

Model		Reel Weight		Greatest Pressure		HOSE  I.D.		HOSE  O.D.		Hose Outlet	Reel Inlet	Maximum hose length		Model		Weight		Greatest Pressure		Size Index
		kg	lbs	bar	pis	mm	Inch	mm	Inch	mm	BSP	m	ft			kg	lbs	bar	psi
ES520SRSH35S10SS		22	49	350	5076	10	3/8	18	0.709	M18X1.5	G1/2	35	115	ES520SRSHS10SS		22	49	350	5076	1
ES520SRSH25S13SS		22	49	350	5076	13	2/4	22	0.866	M22X1.5	G1/2	25	82	ES520SRSHS13SS		22	49	350	5076	1

Product Features:

• Installed on the roller of reel outlet is convenient for retracting and unwinding operation, thus to avoid friction and reduce the hose deformation and wear.
• Hose length can be locked as required.
• The stop function can avoid reel from being stuck when the tubing is completely unrolled.
• Corrosion resistance: made of stainless steel to prevent rust and anti-static
• Rotating bracket and multi-position adjustable outlet make installation and use quick and easy.
• Hose locking function.
• The hose retracts the spring to accumulate energy, and the rewinding is smooth and powerful.



Factory Information:

Our patented Ebenalp Winder adopts advanced concept for design and production and is durable and good-looking.. It has various product categories, including spring-powdered, motor-powered and hand-operated type and can be used at a broad area, including firefighting, emergency rescue, municipal environmental sanitation and road cleaning, on-site management in factory and plant, airport and railway oil transportation, engineering machinery and other occasions where hose management is required.

Research and development team of Ebenalp is experienced in hydraulic system design practice and dedicated to helping customers solve their problem with the most thoughtful and highest quality service. We provide all kinds of pipeline solutions related to winder. We are the best supplier and partner in hydraulic joint sector.


If you need pls contact with Tanya Tan freely.

Ebenalp Mobile Hydraulic Equipment Manufacturing Ningbo Co.,LTD.

Tel:+86 0574-65007596
Fax:+86 0574-65801180
Cell: 0086-15116240218(whatsapp/wechat)
Email: tanya@ebenalp.com
Website：http://en.ebenalp.com/

Payment Terms︰ TT/LC
